MQSPACK MP206-M M-type Rotary Table

*Consistent tension system provides perfect wrapping performance.

*Powered pre-stretch ratio up to 300%.

*7” touch screen can store 9 groups wrapping parameters

*Safety device under carriage, more safety for operator *Dual chain structure indside column, carriage speed variable

*Photoelectric sensor detect cargo height automaticlly

Get in touch

Description

Product Parameters
Loading Weight： 2000KG Power: 1.35KW
Turntable Speed: 0-15rpm/min,speed variable,turntable soft start & soft stop Machine voltage: 220V,50/60HZ,20A
Wrapping Height: 2100mm、2400mm、2600mm Machine Weight: 700KG
Turntable Diameter: 1500mm/1650mm/1800mm Dimensions: 2565*1500*2535mm
Pre tensioning ratio: 300% Control: PLC programmable control
Carriage Speed: 3m/min Working Mode: auto/manual
Packing Speed: 20-40 pallets/h

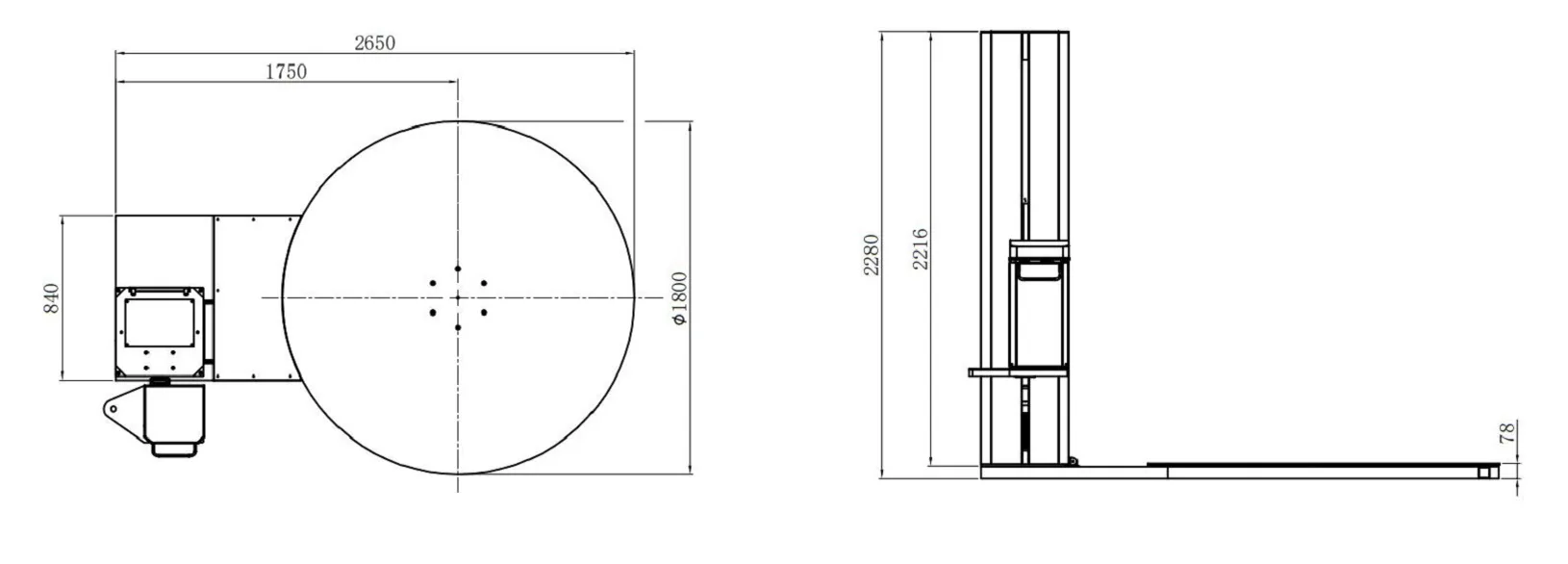

Drawing Size
