MQSPACK MP502 High Speed Ring Winding Packaging Machine

  • More stable operation, full servo control for rising, falling, rotating, and film discharging
  • More economical use, constanttension film release, fixed point quantitative winding
  • Safer operation, increased proactive security protection, and improved passive security performance.
  • More convenient operation, visualman-machine interface, simple and understandable operation
Get in touch

Description

Product Parameters
Maximum wrapping speed: 45/60/90loads/hour Inverter: SIEMENS
Maximum wrapping height: 3000MM Voltage: 380v/60hz
Rotating speed: 1..5s per circle Working Mode: auto
Ring size: 2200MM Weight: 4000kg
Power: 6.7KW Dimensions: 3174*2994*4005mm
Carriage Speed: 20m/min Machine weight: 2T
FILM&CLAMP CUT: automatic(heat type) Machine dimensions: L3610*W2500
The height is related to the height of the goods and the height of the line body
Standard pre-stretch: 2.5 Pressing stroke: 0-1600mm
PLC: SIEMENS Top pressing method: Pneumatic pressure top
Touch screen: SIEMENS

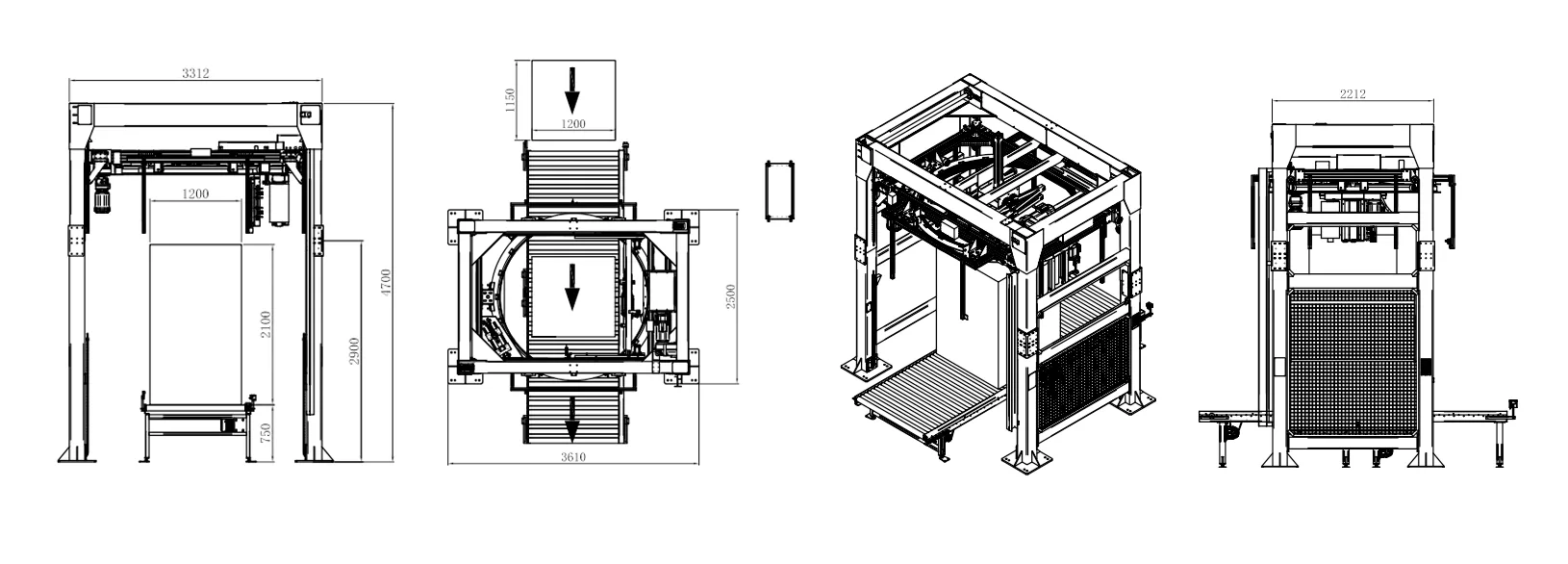

Drawing Size
